Jumbo Display Temperature Indicator (4 Inch) – DPI-4000-D

Product Description :

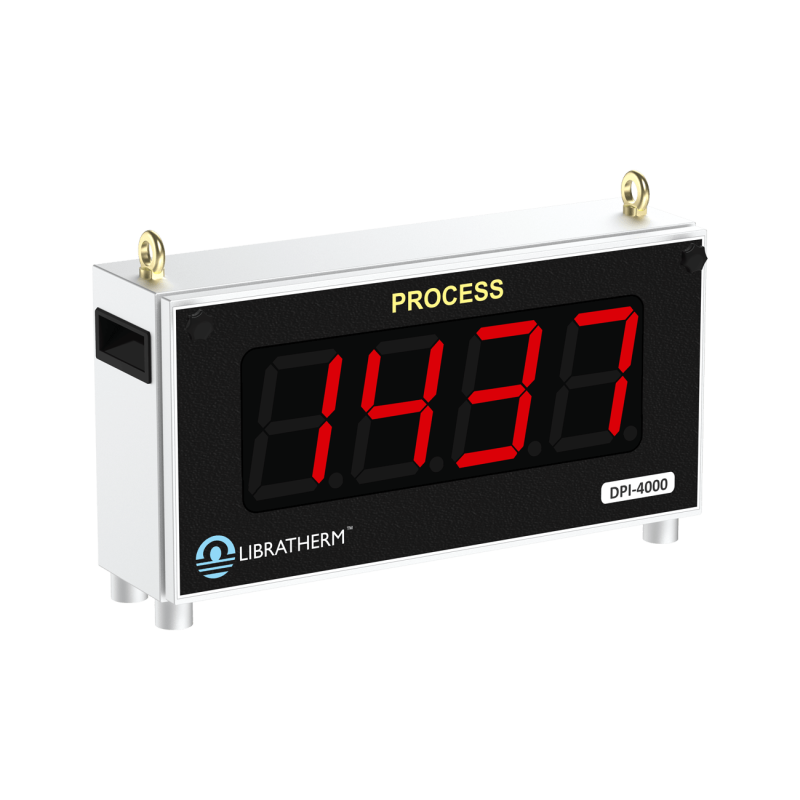

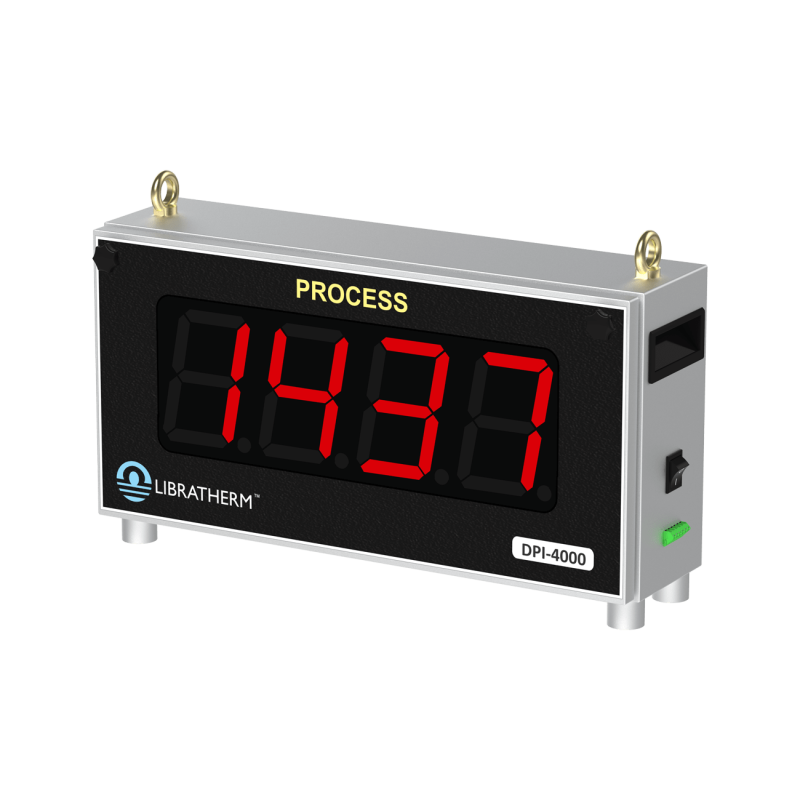

DPI-4000-D – Large Display 4 digit 4” height Digital Process Indicator.
Request to Quote
  • Solid state electronic design.
  • 3½ digit or 4 digit DPM.
  • Factory set input type – as per user’s requirement.
  • Choice of 4” and 8” digit size for long distance visibility.
  • Wall mounted, Ceiling mounted or desk mounted facility.
ParametersDescription
DesignSolid state design using 3 and and 4 digit DPM
Signal Input Standard Thermocouples (J, K type), Pt-100,
0-20mA, 4-20mA,(0-5)VDC, (0-10)VDC – user selectable using DIP switch
Display 4 digit – 4” seven-segment red LED display.
Display RangeFor Process Input :
i) -1999 to 9999
For Temperature Input :
ii) 0 to 400 °C (J type) / 0 to 1200 °C (K type)
iii) 0.0 to 199.9 °C / -100.0 to 400.0 °C (RTD)
iv) For any other input calibration range to be specified.
Calibration RangeUser to specify the desired calibration range. (On site calibration adjustment possible using ZERO and SPAN potentiometer).
Resolution 1 count, 0.1 count, 0.01 count or 0.001 count (user to specify Decimal point position – subject to selected input type)
Accuracyi) Better than +/-0.5% to +/- 1% for the temperature input in the specified range.
ii) Absolute for the process input of voltage and current signal.
Aux. Supply230AC +/- 10%, 50/60 Hz (110VAC or 24AC / 24VDC – optional)
EnclosureDust free – Metallic powder coated (IP 54)
Size (mm.)500(W) x 250(H) x 150(D)
Operating conditionsTemperature: 60 0C , RH 90% max. (Non-Condensing)
Weight6.0kg (approx.)
MountingWall mounting key holes, ceiling mounted hooks or can be placed on a desk.
EnclosureMS – powder coated with Siemens gray texture colour.
Technical DocumentsEach display unit will be supplied along with the detail user’s manual, wiring diagram, calibration report.
Standard Input Type (A)Part No.
J type T/C (Fe/Con) : 0 to 400 °C (A1)1101-4
K T/C (Cr/Al) : 0 to 1200 °C (A2)1102-4
RTD1 : 0.0 to 199.9 °C (A3)1103-4
RTD2 : -50.0 to 400.0 °C (A4)1104-4
0-5V : (-1999 to 9999) (A5)1105-4
0-10V : (-1999 to 9999) (A6)1105-4
4-20mA : (-1999 to 9999) (A7)1105-4
0-20mA : (-1999 to 9999) (A8)1105-4
Please specify if any other input (A9)1106-4
