Jumbo Display Temperature Indicator (8 Inch) – DPI-8000-D

Product Description :

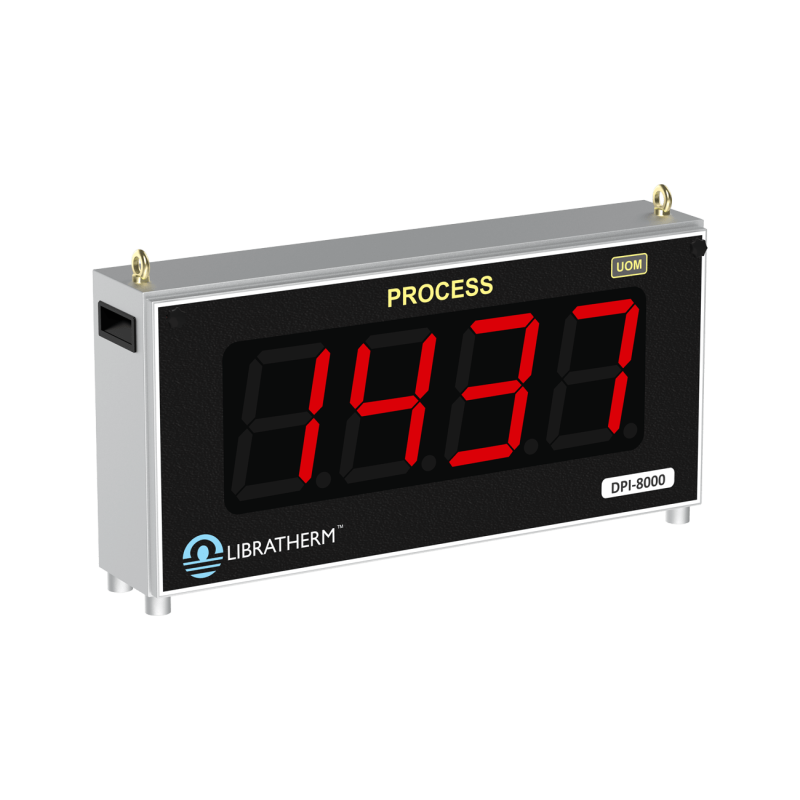

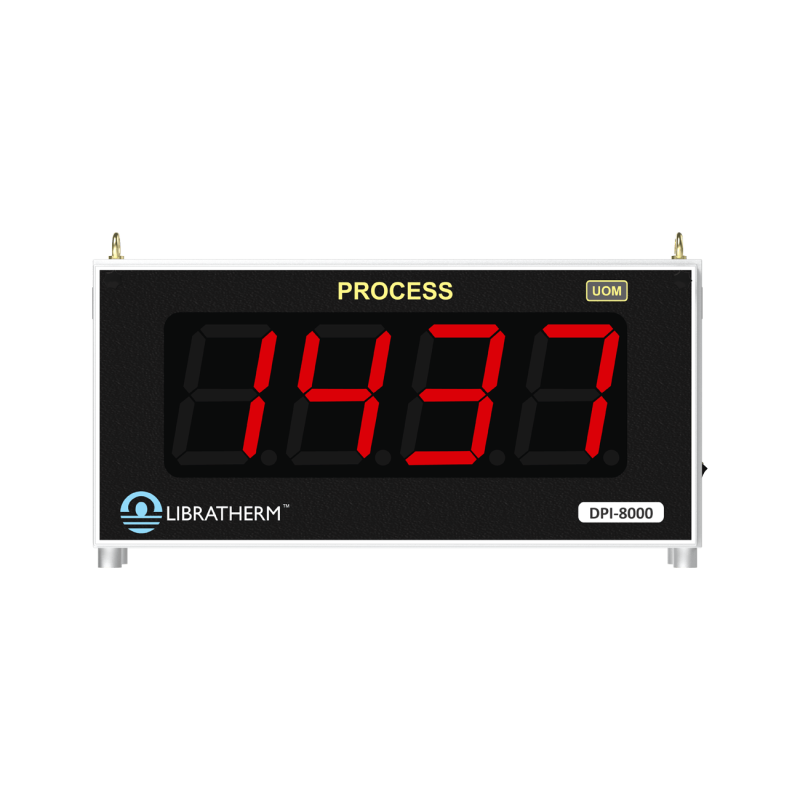

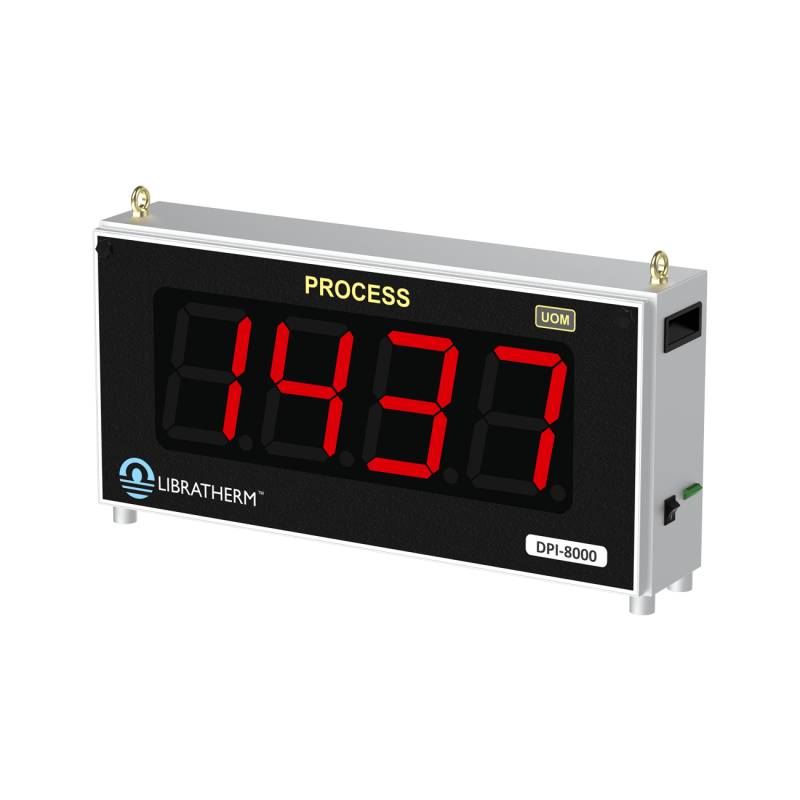

DPI-8000-D– Large Display 4 digit 8” height Digital Process Indicator.

Request to Quote
  • Solid state electronic design. 3½ digit or 4 digit DPM.
  • Factory set input type – as per user’s requirment.
  • Choice of 4” and 8” digit size for long distance visibility.
  • Wall mounted, Ceiling mounted or desk mounted facility.
ParametersDescription
DesignSolid state design using 3 and ½ digit and 4 digit DPM.
Signal InputStandard Thermocouples (J, K type), Pt-100, 0-20mA, 4-20 mA, (0-5) VDC, (0-10) VDC – user selectable using DIP switch.
Display4 digit – 8” seven segment red LED display.
Display Range For Process Input:
1) -1999 to 9999
For Temperature Input:
1) 0 to 400 °C (J type) / 0 to 1200 °C (K type)
2) 0.0 to 199.9 °C / -100.0 to 400.0 °C (RTD)
3) For any other input calibration range to be specified
Calibration RangeUser to specify the desired calibration range. (On-site calibration adjustment possible using ZERO and SPAN potentiometer).
Resolution1 count, 0.1 count, 0.01 count or 0.001 count (user to specify – subject to selected input type).
Accuracy1) Better than +/- 0.5% to +/- 1% for the temperature input in the specified range.
2) Absolute to the process input.
Distance between 2 digits Sufficient to identify each digit from long distance.
Each digit is easily replaceable.
Aux. Supply230AC +/- 10%, 50/60 Hz (110 VAC or 24AC / 24 VDC – optional).
EnclosureDust free – Metallic powder coated (IP 64).
Size (mm.)760 (W) x 340 (H) x 150 (D) - 8” LED display.
Operating conditionsTemperature: 60 °C, RH 90% max.
Weight10.0 Kg (approx.)
MountingWall mounting key holes, Ceiling mounted hooks or can be placed on a shelf.
EnclosureMS – powder coated with Siemens gray texture color.
Technical DocumentsEach display unit will be supplied along with the detail user’s manual, wiring diagram, calibration report.
Standard Input Type (A)Part No.
J type T/C (Fe/Con) : 0 to 400 °C (A1)1101-8
K T/C (Cr/Al) : 0 to 1200 °C (A2)1102-8
RTD1 : 0.0 to 199.9 °C (A3)1103-8
RTD2 : -50.0 to 199.9 °C (A4)1104-8
0-5V : (-1999 to 9999) (A5)1105-8
0-10V : (-1999 to 9999) (A6)1105-8
4-20 mA : (-1999 to 9999) (A7)1105-8
0-20 mA : (-1999 to 9999) (A8)1105-8
Any other input (A9)1106-8
