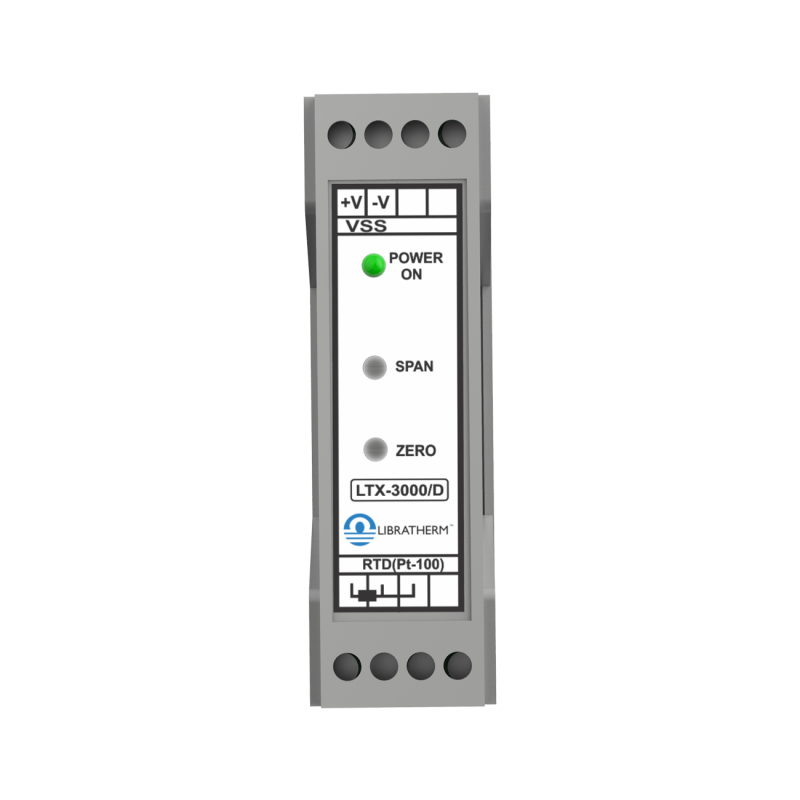

Loop Powered Transmitter in DIN Rail Mount – LTX-3000-D
Loop Powered Transmitter in DIN Rail Mount – LTX-3000-D
Product Description :
LTX-3000-D – Two-Wire Temperature Transmitter (DIN Rail Mounted).
- Two wire design (supply and output on the same lines).
- Accepts RTD (Pt-100) / thermocouple / millivolt input.
- (4-20) mA non-isolated and isolated output.
- ZERO and SPAN adjustments for on-site calibration.
- Loop supply of 12 to 36VDC (with loop continuity LED).
- Saturation or open sensor current limited to 25Ma.
- Reverse polarity protection.
- Available in both Field mount and DIN rail mount versions.
- Special model ISO-12 for 4-20mA to 4-20mA isolation.
- Carry thermocouple or RTD signals over long distance without noise and loss of accuracy.
- Eliminates the use of a costly compensating cable.
- Useful for converting other mV/Ohms signal to equivalent 4-20mA loop.
| Parameters | Description |
|---|---|
| Input | Thermocouple, mV, RTD (Pt-100) or resistance signal from displacement, position or level sensor. |
| Range | Subject to specified input (User should specify the required range). |
| Output | (4-20) mA, two wire and loop powered (calibrated linearly to the input signal). Isolated or Non-Isolated, as per model. |
| Accuracy | ± 0.5 % to +/- 1% of the calibrated range or better including linearity, Hysterisis, and compensation error. |
| Calibration | On site using ZERO / SPAN presets (user settable using a small screw driver) Zero Adjustment: +/-25% of the range (20 Turns). Span Adjustment: +/- 25% of the range (20 Turns). |
| Loop supply (Vs) | 24VDC nominal (12 to 36) VDC for non isolated versions |
| Loop Status | The built in Red LED indicates the continuity status of the loop. LED will not glow if the current loop is broken. |
| Loop Resistance | 600 Ohms @ 24VDC (loop supply dependent). |
| Max. Load Resistance | RL Max = (Vs-12V) / 20 mA. |
| Isolation | Input and Output are Galvanically isolated (> 1KV) for isolated models |
| Burn Out Detection | The output shall saturate > 20mA (max. 25mA @ 24VDC loop supply) |
| Operating Temp. | 10 °C – 70 °C |
| Mounting | On 35 mm DIN rail. |
| Sizes | 22 x 75 x 100 mm. |
| Sr. No. | Specifications | Part No. |
|---|---|---|
| SIMPLEX DIN RAIL MOUNT TRANSMITTER – K TC | ||
| 1 | INPUT : K TYPE T/C RANGE : 0 to 400 °C | 2005-1-1 |
| 2 | INPUT : K TYPE T/C RANGE : 0 to 600 °C | 2005-1-2 |
| 3 | INPUT : K TYPE T/C RANGE : 0 to 800 °C | 2005-1-3 |
| 4 | INPUT : K TYPE T/C RANGE : 0 to 1000 °C | 2005-1-4 |
| 5 | INPUT : K TYPE T/C RANGE : 0 to 1200 °C | 2005-1-5 |
| SIMPLEX DIN RAIL MOUNT TRANSMITTER – RTD(PT-100) | ||
| 11 | INPUT : RTD Pt-100 RANGE : -50 to 100 °C | 2005-2-1 |
| 12 | INPUT : RTD Pt-100 RANGE : 0 to 150 °C | 2005-2-2 |
| 13 | INPUT : RTD Pt-100 RANGE : 0 to 200 °C | 2005-2-3 |
| 14 | INPUT : RTD Pt-100 RANGE : 0 to 250 °C | 2005-2-4 |
| 15 | INPUT : RTD Pt-100 RANGE : 0 to 300 °C | 2005-2-5 |
| 16 | INPUT : RTD Pt-100 RANGE : 0 to 350 °C | 2005-2-6 |
| 17 | INPUT : RTD Pt-100 RANGE : 0 to 400 °C | 2005-2-7 |
