Molten Metal Pyrometer with Remote Display – LRU-2010
Molten Metal Pyrometer with Remote Display – LRU-2010
Product Description :

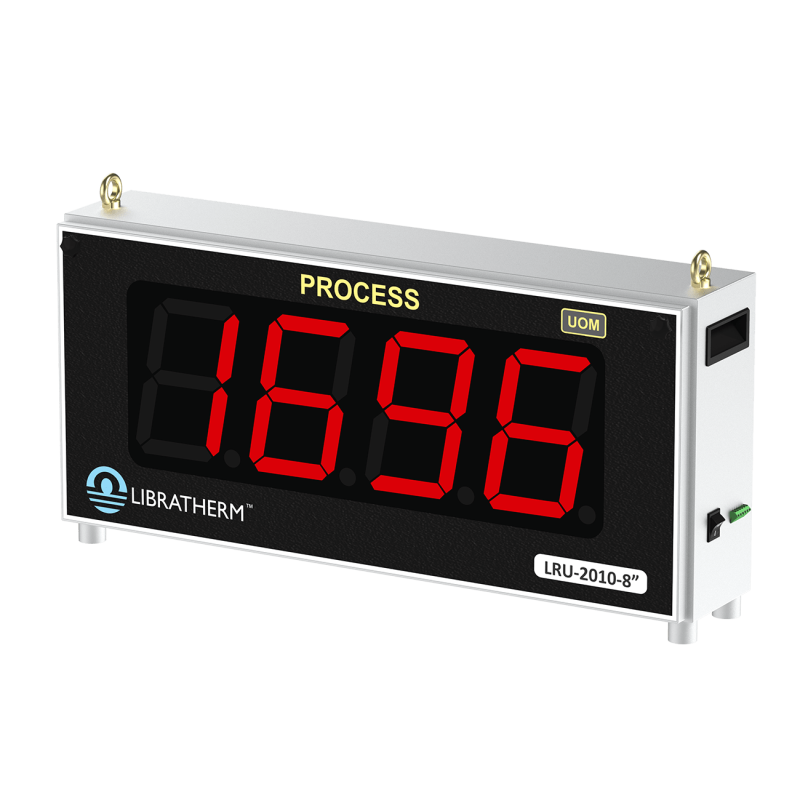

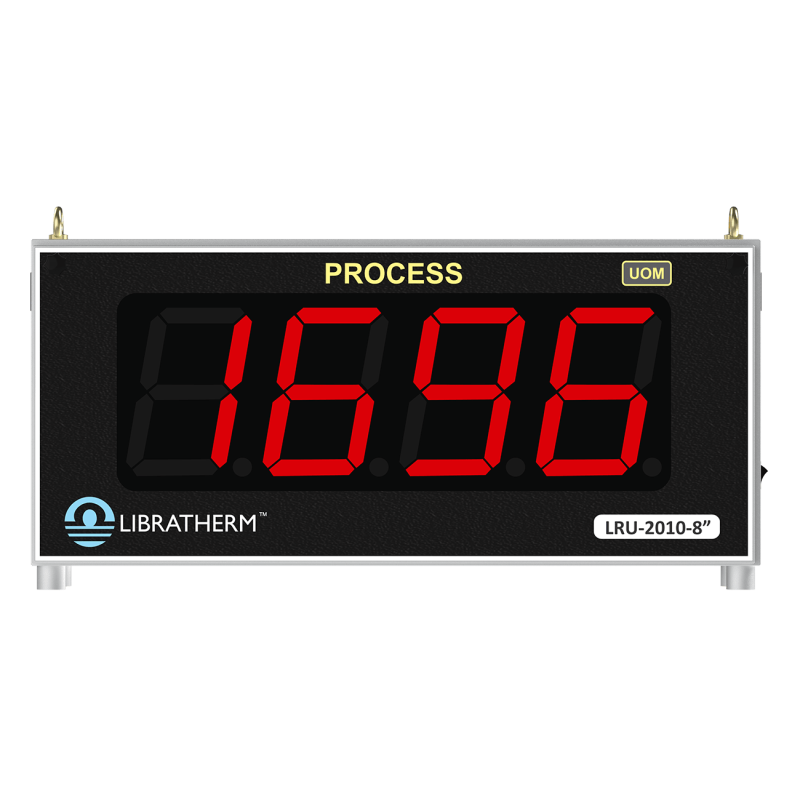

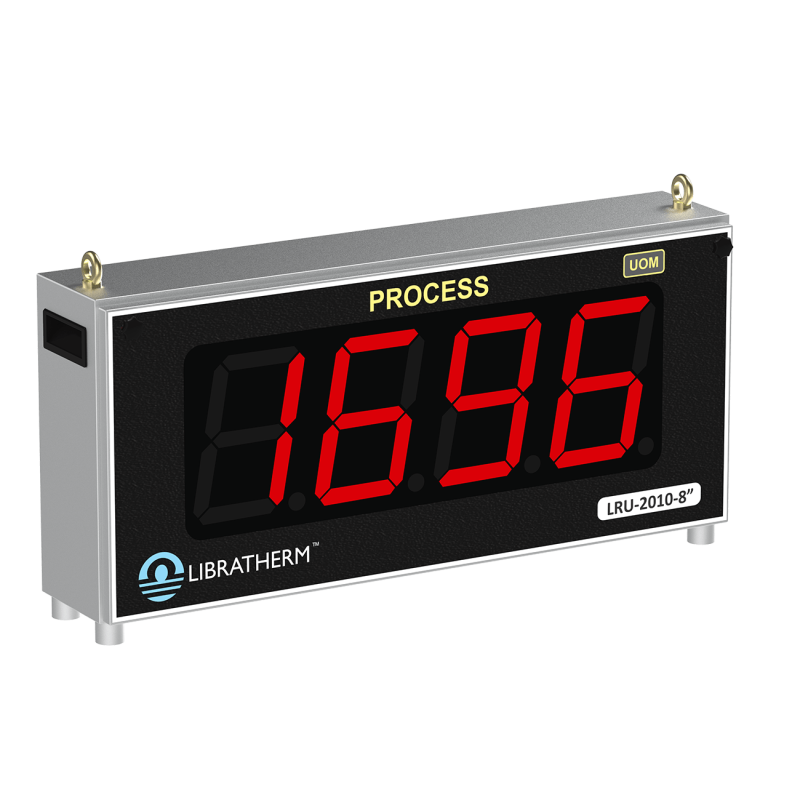

LRU-2010 – Molten Metal Temperature Indicator with Remote Display
| Parameters | Description |
|---|---|
| Signal Input | 2 wire RS-485 serial output from LMI-2010 |
| Display | 4 digit – 4” or 8” red seven segments LED display – Single-Sided or Double-Sided display (View from front and back) |
| LED indication | 2 nos. front panel LEDs for RXD and TXD |
| Supply | 90-240 AC +/-15%, 50/60 Hz |
| Enclosure | Dust-free – Metallic powder coated |
| Size | 500(w) x 250(h) x 160(d)mm. (4”) / 760(w) x 350(h) x 160(d)mm.(8”) |
| Weight | 8.0 to 10.0 Kg (approx.) |
| Mounting | Wall mounting key holes or can be placed on a flat platform. |
| Sr. No. | Model | Specifications | Part No. |
|---|---|---|---|
| 1.1 | LRU-2010-4-1 | Remote Display Unit 4” display size – Single-Sided (Works only on RS-485 interface with LMI-2010) (to be ordered only with LMI-2010) | 3501 |
| 1.2 | LRU-2010-4-2 | Remote Display Unit 4” display size – Double Sided (Works only on RS-485 interface with LMI-2010) (to be ordered only with LMI-2010) | 3502 |
| 1.3 | LRU-2010-8-1 | Remote Display Unit 8” display size – Single-Sided (Works only on RS-485 interface with LMI-2010) (to be ordered only with LMI-2010) | 3503 |
| 1.4 | LRU-2010-8-2 | Remote Display Unit 8” display size – Double Sided (Works only on RS-485 interface with LMI-2010) (to be ordered only with LMI-2010) | 3504 |
