Temperature and Humidity Indicator – HTI-2000



Temperature and Humidity Indicator – HTI-2000

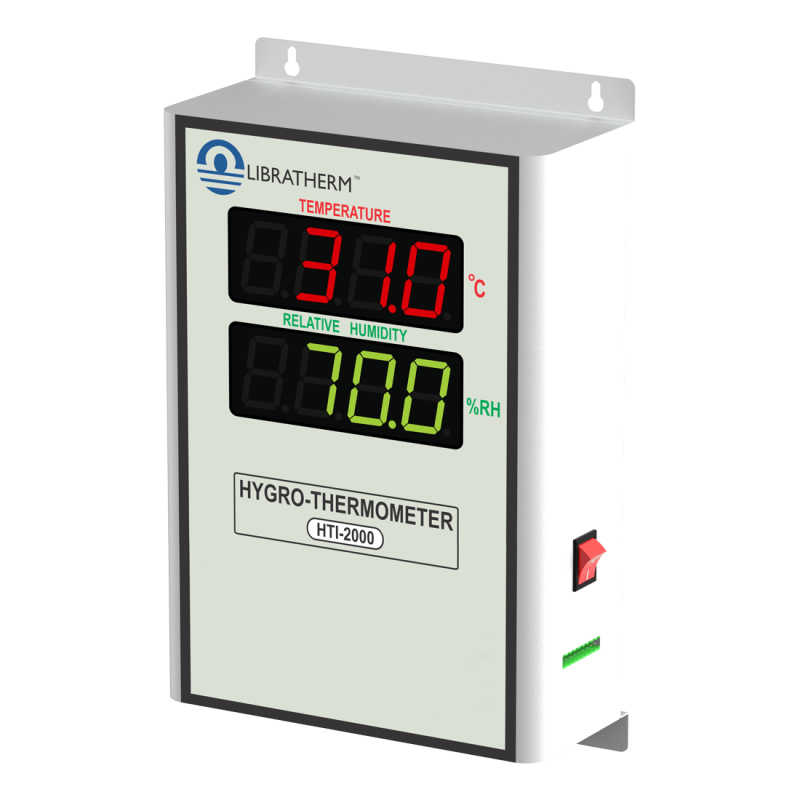

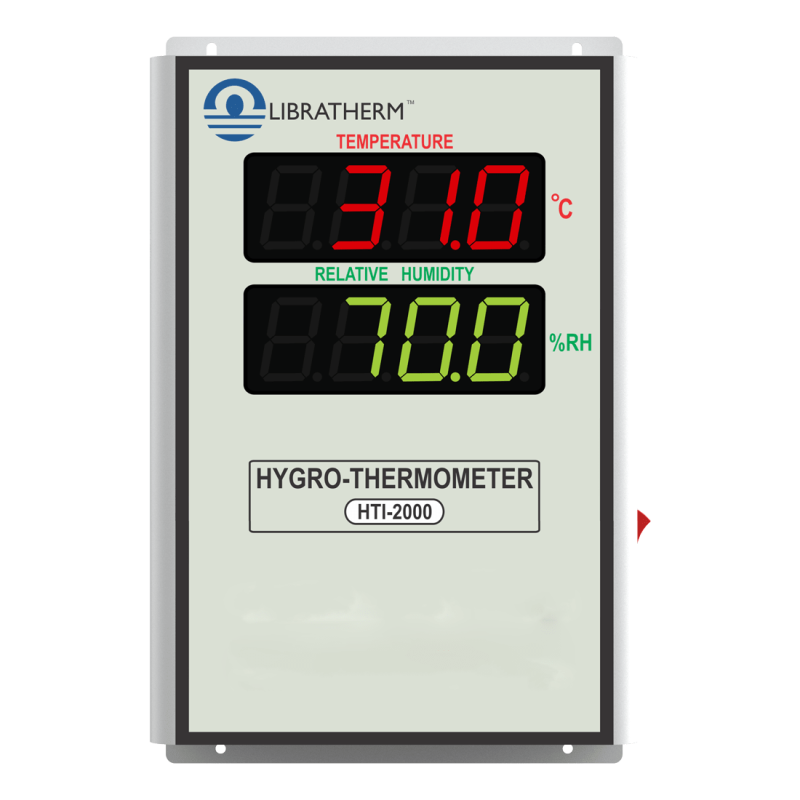

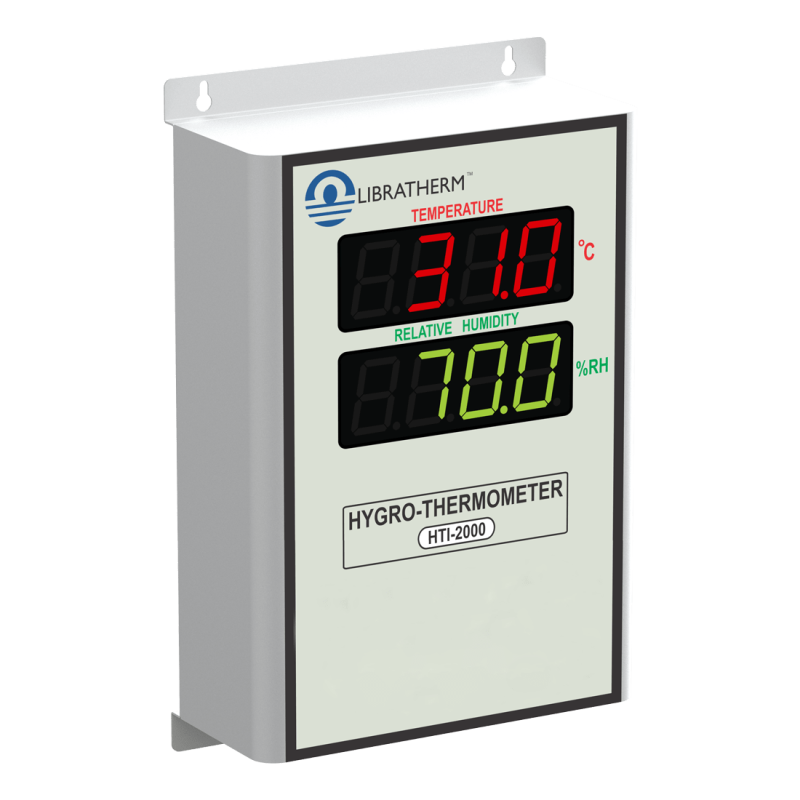

Libratherm offers a digital large display industrial grade Hygro-thermometer HTI-2000 to monitor Temperature and Humidity values in the surrounding environment on a 2” Red/Green display. Large display size allows long-distance visibility and hence ideal for Industrial use and can be easily mounted at a height on the wall. The integrated standard T+Rh sensor module is available with a 2-meter cable. For long-distance sensing very much away from the display unit, suitable Libratherm make T +Rh sensor/transmitter can be used. Optionally, 4-20mA proportional to Temperature and Humidity values is available.
This jumbo display hygro-thermometer finds its application in Green House, Storage rooms, Server rooms, Sterilizers, Pharmaceutical and Food product storage or manufacturing plants, warehouses, textile plants, and all such similar areas where the measurement of T+Rh is important and critical and required to be strictly monitored and maintained.
Key Features:
- Solid state design with red and green 2” display.
- Elegant appearance, easy to install.
- Accurate and stable in operation.
- 230VAC operated.
- Built in Sensor or Sensor with extra length of cable.
| Model | HTI-2000 |
|---|---|
| Sensor/Transmitter | 1) Built in - Capacitive / Pt-100 – Class A based T + Rh sensor module with 2 meter cable (Libratherm make model: HTS-440-SS) or compatible with 2) 2 x 4-20mA from Libratherm make (T + RH) sensor cum transmitter (model HTX-440) |
| Temperature Range | 0.0 to 60.0 °C |
| Temperature Accuracy | +/- 0.3 °C |
| %RH Range | 10.0 to 90.0 %RH |
| RH Accuracy | +/-3 %RH @ 25.0 °C. |
| Retransmission Output (Optional feature) | 4-20mA proportional to Temperature range of 0 to 60 °C 4-20mA proportional to Humidity range of 0 to 100% |
| Display for T and %RH | 4 digit each - 2" red / green seven segment LED display |
| Power Supply | 90-240 AC @ 15VA max. 50/60Hz. |
| Enclosure | Sturdy MS powder coated enclosure with suitable wall mounting clamps. |
| Sr. No. | Model | Specifications | Part No. |
|---|---|---|---|
| 1 | HTI-2000 | Digital Hygro Thermometer with 2” red and green display with built in T + RH sensor model HTS-440 | 3240-1 |
| 2 | HTI-2000 | Digital Hygro Thermometer with 2” red and green display with built in T + RH sensor model HTS-440 + 2 x 4-20mA retransmission output | 3240-2 |
| 3 | HTI-2000 | Digital Hygro Thermometer with 2” red and green display with 4-20mA input from external T + RH sensor transmitter model HTX-440 | 3240-3 |
| 4 | HTI-2000 | Digital Hygro Thermometer with 2” red and green display with 4-20mA input from external T + RH sensor transmitter model HTX-440 + 2x4-20mA retransmission output | 3240-4 |
