Temperature and Humidity Indicator with WiFi – HTM-3000-I



Temperature and Humidity Indicator with WiFi – HTM-3000-I
Product Description :
HTM-3000-I – T + RH monitor with Built-in Sensor and facility for SMS/Email Alert.

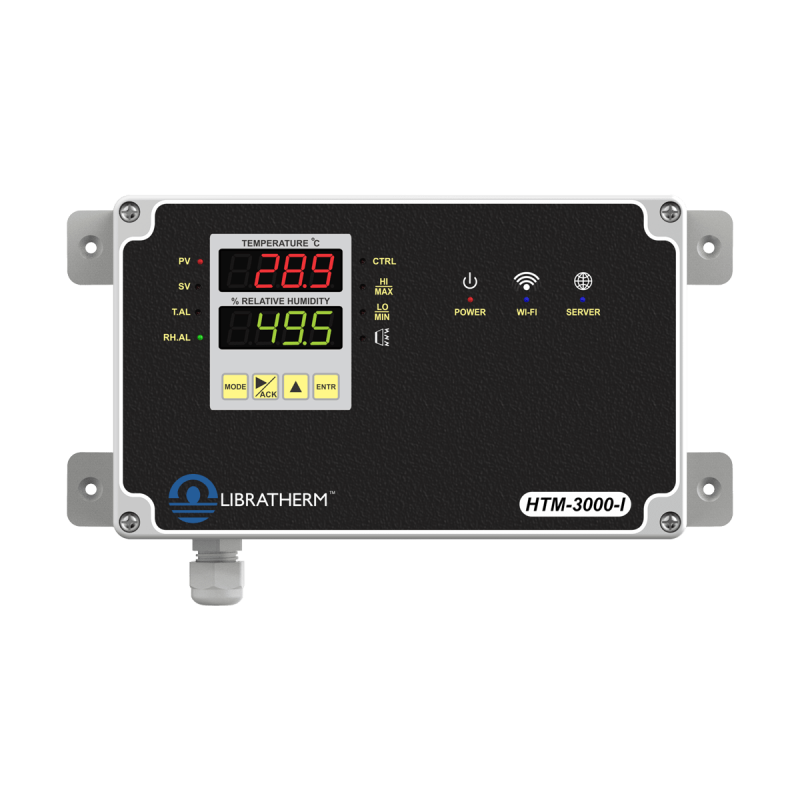

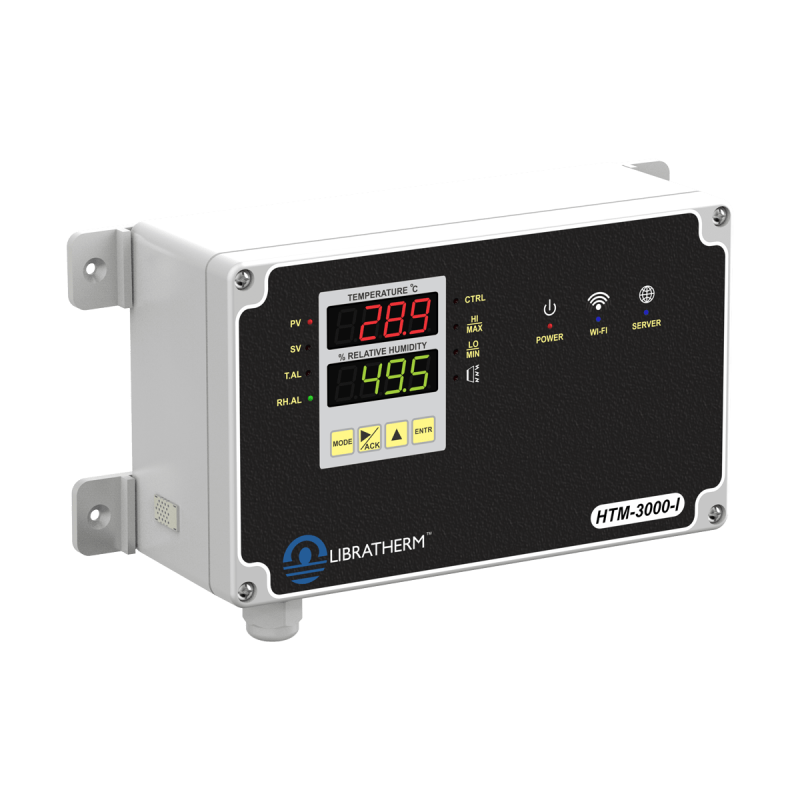

Libratherm offers Calibrated Temperature and Humidity Indicator with Display HTM-3000-I to monitor Temperature and Relative Humidity (T + Rh) value in the Server Room, Data Centre, Ware House, Laboratories, etc. It has the capability to interface with the Internet and thereby T + Rh parameters can be monitored on any Internet-compatible devices like Cell phones, Tablet PC, Laptops, or Desktop computers. Such wireless monitoring feature is very useful in the industry to measure and monitor the unmanned remote areas from any part of the world. The web-based application can be provided to customize the user interface, which allows users to monitor the near real-time value of T and RH with Alarm Alerts. In the event of an abnormal value of T or Rh parameters, the Email or SMS alert can also be generated and can be forwarded to concerned users. HTM-3000-I has a built-in red and green digital display for local monitoring of T + Rh values and has built in LED indications for Power ON, Wi-Fi, and Server connectivity. It works on a 90-240VAC adapter and has a built-in T + Rh sensor or offers an external sensor with 5 meters extended cable.
| Parameter | Description |
|---|---|
| Sensor | For Temperature Pt-100 / class A element For Humidity Capacitive sensor |
| Sensor Type | Built in Sensor or External sensor with 5 meter extension cable. |
| Temperature Range | 0.0 to 60.0 °C |
| Temperature Accuracy | Better than +/- 0.3 °C |
| %RH Range | 10.0 to 100.0 %RH |
| RH Accuracy | Better than +/-3 %RH @ 25.0 °C |
| Display for T and %RH | 4 digit each – 0.3” red / green seven segment LED. |
| High/Low Alarms | Settable through keyboard. Audible Alarms with Delay, Snooze and Reset facility. |
| Wireless connectivity | Wi-Fi / Internet over Wi-Fi |
| Key board | Membrane key board is provided for programming the High/Low Set limits for T and RH and Alarm snooze time. |
| Enclosure (Size) | ABS plastic (120 h x 200 w x 80 d) mm. |
| 24VDC Adapter | 24VDC adapter working on 90-250VAC will be supplied along with HTM-3000-i as per customer requirement. |
| Mounting | Wall mounting clamps are provided. |
| Model | Product Description | Part No. |
|---|---|---|
| HTM-3000-I | T + RH monitor with Built-in Sensor and facility for SMS / Email Alert | 3230 |
| HTM-3000-I | T + RH monitor with External Sensor with 5 meter cable and facility for SMS / Email Alert | 3231 |
