Temperature and Humidity Transmitter with Display – HTX-3000
Temperature and Humidity Transmitter with Display – HTX-3000
Product Description :

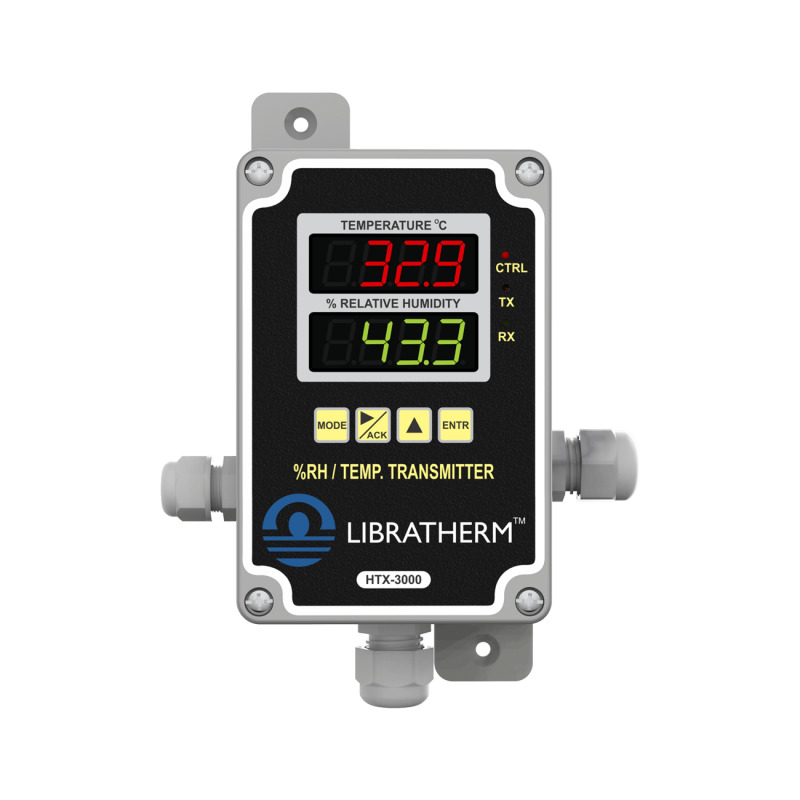

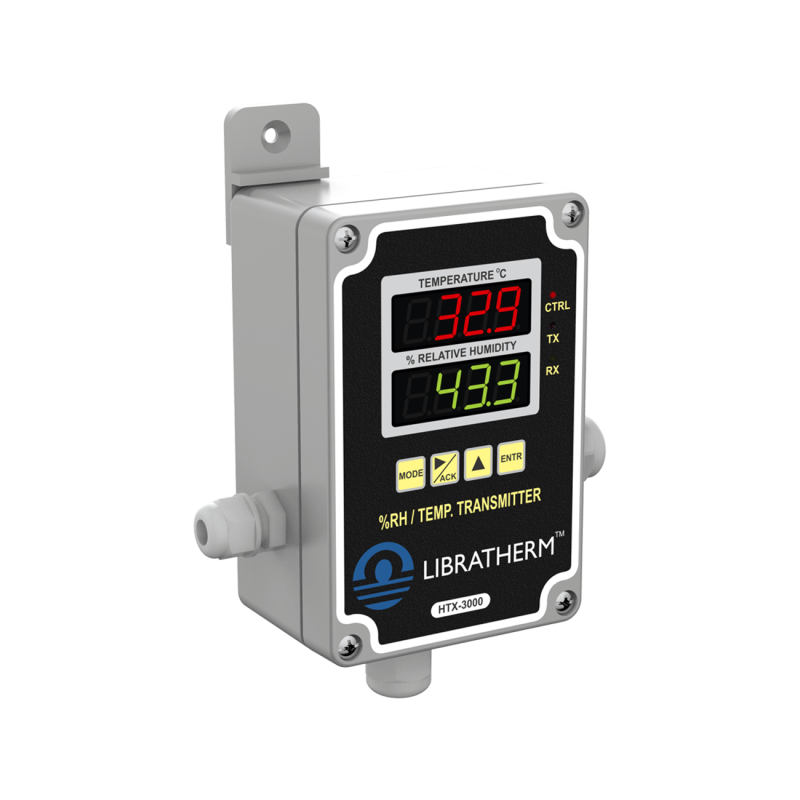

HTX-3000 – Temperature and Humidity Transmitter with Display, 4-20mA/RS-485 Modbus/Ethernet Interface.
Libratherm offers micro-controller-based Temperature and Humidity Transmitter with Display – HTX-3000, 4-20mA output, RS-485 or Ethernet interface as per the user’s requirement. This Hygro Thermo Transmitter with digital indicator finds its application in Green House, Cold Storage Rooms, Server Rooms, Sterilizers, Pharmaceutical Clean Room and Food Product storage or manufacturing plants and all such similar areas where the measurement of T + Rh is important and critical and is required to be strictly monitored at the desired levels.
Applications:
- Microcontroller based design.
- Elegant appearance, easy to operate and compact in size.
- Highly accurate and sturdy in operation.
- Dual display for simultaneous indication of T and RH.
- Offers both Analog and Digital Serial Interface.
| Parameter | Description |
|---|---|
| Sensor | Hygroclip-XD or HTS-440 (common sensor for both T and RH) |
| Temperature Range | -40.0 to 60.0oC (Using Hygroclip XD Sensor) 0.0 to 60.0 oC (Using HTS-440 sensor) |
| Temperature Accuracy | Better than +/- 0.3 ?C |
| %RH Range | 0.0 to 100.0 %RH (Using Hygroclip XD Sensor) 10.0 to 100.0%RH (Using HTS-440 sensor) |
| RH Accuracy | Better than +/-1 %RH @ 25.0 ?C (using Hygroclip-XD sensor) Better than +/-3 %RH @ 25.0 ?C (using HTS-440 sensor) |
| Display for T and %RH | 4 digit each 0.3 Red / Green seven segment LED display |
| Power Requirement (*) | 24VDC @ 150mA (+/-10%) . |
| Output 1 for Temperature | 4-20mA proportional to 0 to 100.0 %RH (12 bit resolution) |
| Output 2 for %RH | 4-20mA proportional to 0 to 100.0 %RH (12 bit resolution) |
| Load Resistance | RLmax. = 400 Ohms @ 24VDC. |
| Serial Output (Optional) | Isolated 2 wire RS485 MODBUS RTU Slave protocol |
| Ethernet Port (Optional) | Ethernet port on RJ-45 jack with TCP/IP protocol. |
| Key board | Membrane key board is provided for programming the MODBUS address and for Range Calibration. |
| Enclosure (Size) | ABS plastic (120 x 80 x 55) mm. |
| Sensor Hygroclip XD | 14 x 140 mm with screw-on type plug and socket 14 x 170 mm + 2meter long cable |
| Sensor HTS-440 | 60 x 35 x 15 mm + 2 meter long cable |
| 24VDC Adapter (Optional) | 24VDC adapter working on 90-250VAC can be supplied along with HTX-3000. |
| Mounting / Cable Entry | Wall mounting using suitable clamps. Cable entry glands either at the left side or right side or at the rear side as per the requirement. |
| Sr. No | Product Description | Part No. |
|---|---|---|
| 1 | With Integrated Hygroclip XD Sensor and 2 x 4-20mA output | 3212-1 |
| 2 | With Integrated HTS-440 Sensor and 2 x 4-20mA output | 3212-2 |
| 3 | With 2 meter Hygroclip XD Sensor cable and 2 x 4-20mA output | 3213-1 |
| 4 | With 2 meter HTS-440 Sensor cable and 2 x 4-20mA output | 3213-2 |
| 5 | With Integrated Hygroclip XD Sensor and RS 485 Serial interface | 3214-1 |
| 6 | With Integrated HTS-440 Sensor and RS 485 Serial interface | 3214-2 |
| 7 | With 2 meter Hygroclip XD Sensor cable & RS 485 Serial interface | 3215-1 |
| 8 | With 2 meter HTS-440 Sensor cable & RS 485 Serial interface | 3215-2 |
| 9 | With Integrated Hygroclip XD sensor and EHTERNET Port RJ45 | 3216-1 |
| 10 | With Integrated HTS-440 sensor and EHTERNET Port RJ45 | 3216-2 |
| 11 | With 2 meter Hygroclip XD Sensor cable and ETHERNET Port | 3217-1 |
| 12 | With 2 meter HTS-440 Sensor cable and ETHERNET Port | 3217-2 |
