Three Phase Thyristor Power Switch – POW-12-ZC
Three Phase Thyristor Power Switch – POW-12-ZC

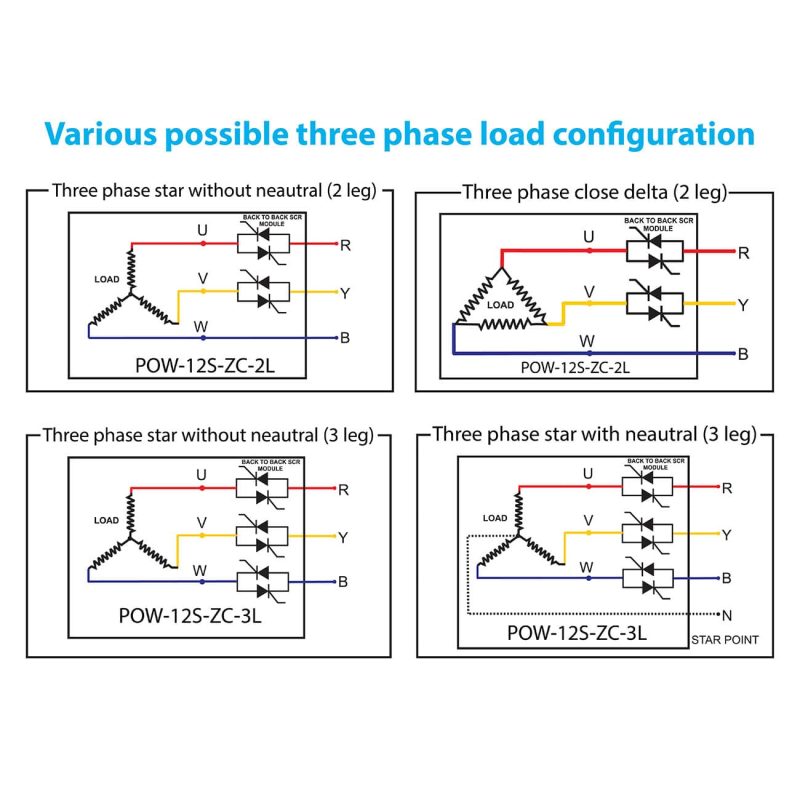

POW-12-ZC-2L – Three Phase SCR Power Switch suitable for Three Phase Heaters connected in 3 Wire Star without Neutral or close Delta with 2 leg control (1.5KW/3A to 18KW/30A @ 415VAC).
POW-12S-ZC-3L – Three Phase SCR Power Switch suitable for Three Phase Heaters connected in 3 Wire Star without Neutral or 3 Wire Star with Neutral with 3 leg control (1.5KW/3A to 18KW/30A @ 415VAC).
POW-12S-ZC-3L – Three Phase SCR Power Switch suitable for Three Phase Heaters connected in 3 Wire Star without Neutral or 3 Wire Star with Neutral with 3 leg control (1.5KW/3A to 18KW/30A @ 415VAC).

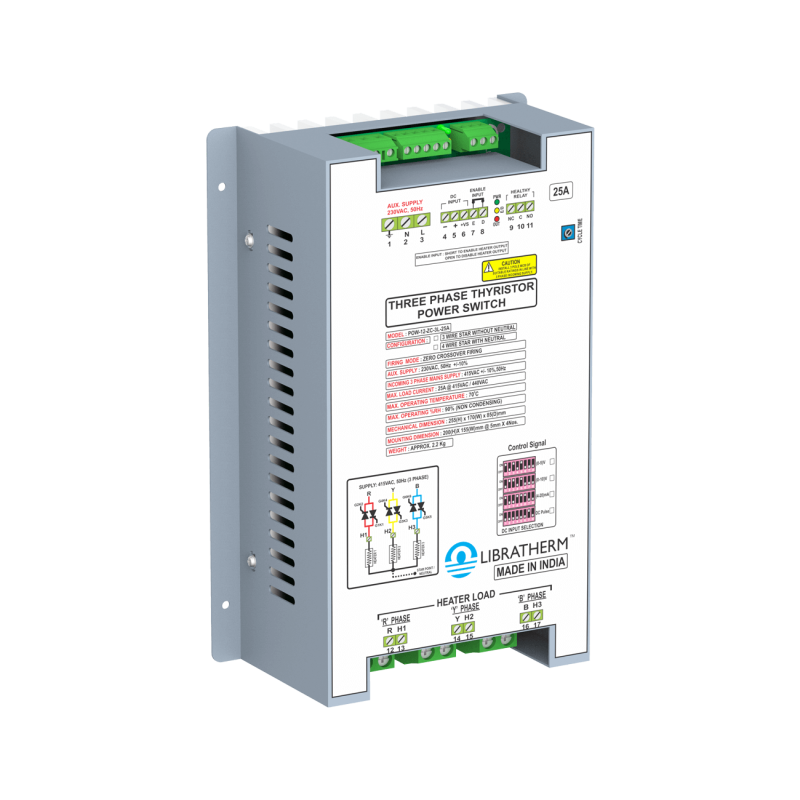

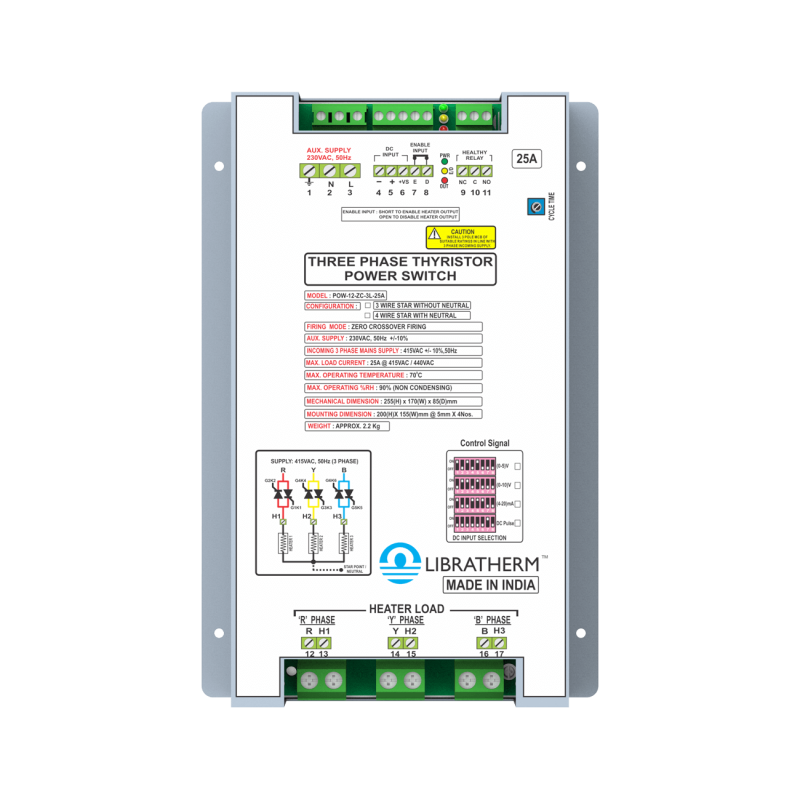

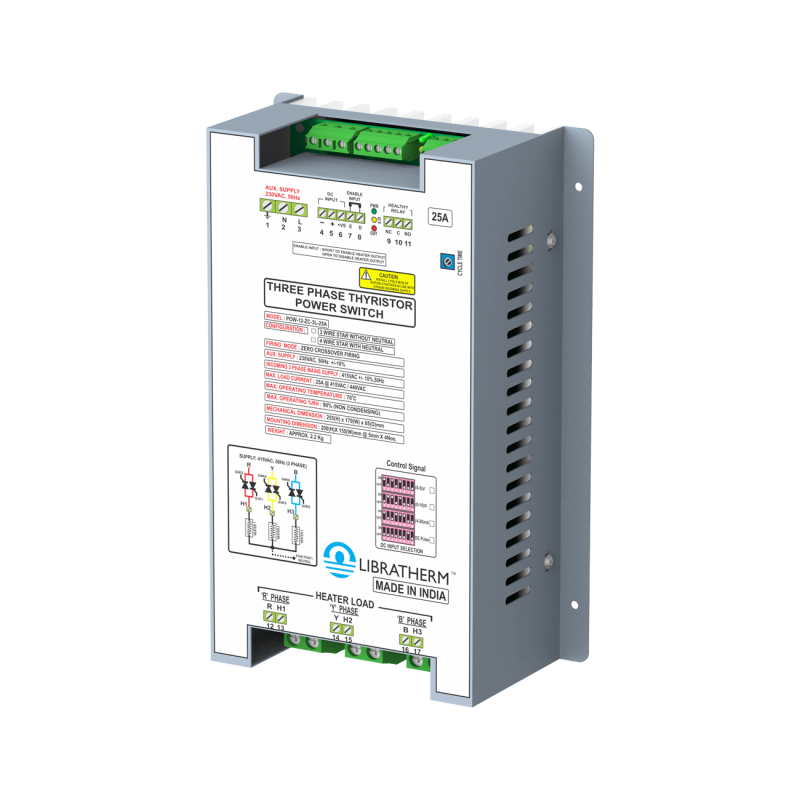

Libratherm offers ready to use Zero Cross Over SCR Power Switch model POW-12-ZC for 3 phase electrical heating loads. This power module comprises Libratherm make triggering card to generate pulse-width modulated (PWM) zero cross over firing pulses to control suitably rated back to back connected SCRs – duly mounted on the aluminum heat sink with heavy-duty input and output connectors for heaters and AC power supply. The entire assembly is mounted in MS powder-coated enclosure, which in turn can be easily mounted inside the closed control panel as desired. This Three Phase Zero Cross Over Controlled Thyristor Power Switch model POW-12-ZC accepts both analog and a digital control signal from DDC, PLC, or PID controller to switch the AC power. The PWM duty cycle is adjustable by the user using the Onboard potentiometer.
Key Features:
- 3 Amps to 30 Amps capacity (1.5KW to 18KW – Three Phase Heaters).
- 3 phase versions (2 leg or 3 leg control).
- Auto / Manual Operation.
- Accepts (4-20)mA / (0-5)VDC / (0-10)VDC or 8 to 24VDC pulse as the control signal.
- Simple and Modular design for easy servicing of cards and thyristors.
- Suitable for both inductive and resistive heating loads.
- Finds application in 3 phase air heaters in AHU / HVAC, Industrial Heating.
- Compatible with DDC/PID/PLC/HMI of any brand.
| Parameters | Description |
|---|---|
| Available Ratings | 1.5KW to 18KW @ 415VAC/440VAC, 3 phase. |
| Available Configuration | Three phase (2 leg or 3 leg control) 3 or 4 wire star or 3 wire delta. |
| Control Action | Zero cross over Burst firing, time proportional with variable duty cycle. |
| Control Signal | (4-20) mA / (0-5) VDC / (0-10) VDC / Potentiometer or 5-24VDC pulse or potential free contact. |
| On/Off PWM Duty cycle | 2 to 20 seconds (user adjustable) using on card potentiometer proportional to Linear control signal. |
| Output | 0 to 230VAC or 0 to 415/440 VAC variable on/off duty cycle proportional to pulse input control signal from external controller. |
| Load Type | Suitable for 3 phase resistive or inductive / transformer load. |
| Supply Voltage | 230 VAC +/- 10%, 50/60 Hz. |
| Size | 255 h x 170 w x 85 d mm. (200 x 155 mm mounting holes 4 x M6) |
| Mounting | POW-12-ZC can be mounted on the base plate of the control panel. |
| Model | Product Description | Part No. |
|---|---|---|
| POW-12-ZC-2L-15A | Three Phase SCR Power Switch suitable for 3 phase heaters connected in 3 wire Star without Neutral or in Close Delta in 2 leg control only (upto max 9KW/15A @ 415VAC) | 2901-1 |
| POW-12-ZC-2L-30A | Three Phase SCR Power Switch suitable for 3 phase heaters connected in 3 wire Star without Neutral or in Close Delta in 2 leg control only (upto max 18KW/30A @ 415VAC) | 2901-2 |
| POW-12S-ZC-3L-15A | Three Phase SCR Power Switch suitable for 3 phase heaters connected in 3 wire Star without neutral or 3 wire star with neutral in 3 leg control (upto max 9KW/15A @ 415VAC) | 2902-1 |
| POW-12S-ZC-3L-30A | Three Phase SCR Power Switch suitable for 3 phase heaters connected in 3 wire Star without neutral or 3 wire star with neutral in 3 leg control (upto max 18KW/30A @ 415VAC) | 2902-2 |
