Thyristor DC Drive for DC Motor (Four Wire/PMDC) – Front Panel Mount – TDM-10-2HP

Product Description :

TDM-10 – D.C. Drive (Panel mounting type) (1/4 HP to 2 HP)

Size (mm) : 96 x 96 x 160

Part No : 2150

Request to Quote
  • Fully solid-state design.
  • Linear variation of speed.
  • Suitable for 1/4 HP to 5 HP / single phase (4-wire or PMDC motors).
  • Adjustable maximum and minimum Speed.
  • Built in Current Limit / over Load Trip and Field Failure Protection.
  • Control signal is optically isolated in modular design.
  • Accepts speed control signal of (0-5) VDC, (0-10) VDC or (4-20) mA, hence suitable for machine automation.
  • 1/4 DIN Size (TDM-10).
  • Operates on 230VAC.
  • Suitable for small machines in Plastic, Packaging and Pharmaceutical industries.
  • Applications where smooth steady and fine DC motor speed control is required.
ParametesDescription
Operating Supply Voltage230 VAC / 115 VAC, 50 Hz, +/- 10%.
DC Output Voltage1) Armature: 0 to 200VDC Field: 200 VDC fixed @ 230VAC.
2) Armature : 0 to 100VDC Field : 100 VDC fixed @ 115VAC
Motor Load in HP0.25 to 2 HP with Armature / Field or PMDC
Speed Control SignalThrough 10K single turn potentiometer on front panel
Operating Temperature0 °C to 70 °C.
Maximum Current Rating25% of the rated value (continuous).

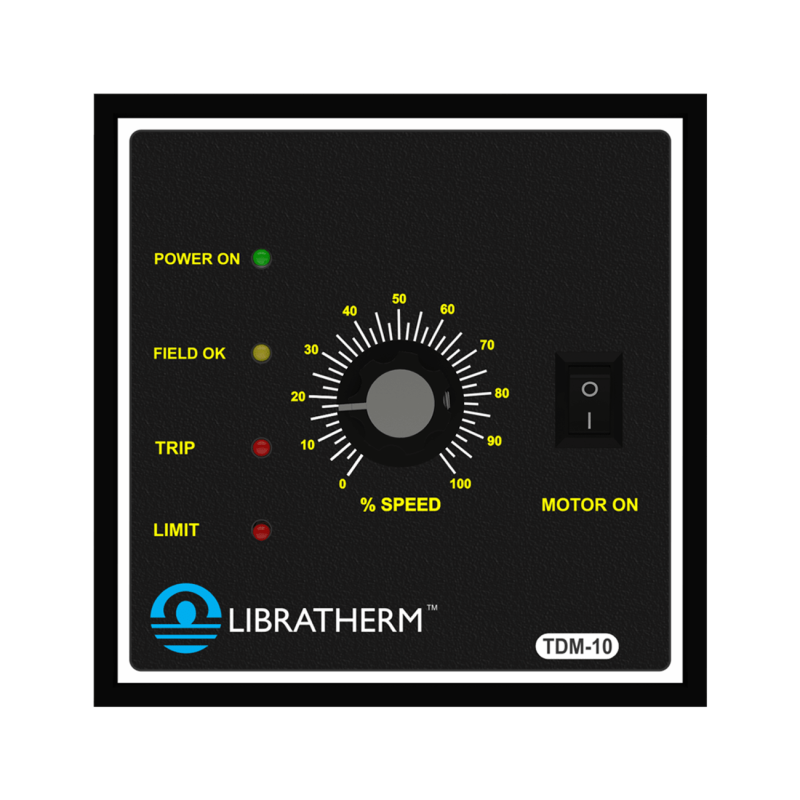

Front Panel LED IndicationFor Power ON, Current Limit and Trip Relay.
Speed Regulation+/- 10% of set speed. By Armature Feedback.
Acceleration / Retardation5 seconds fixed.
Size96 x 96 x 160 mm.
MountingTDM-10 can be mounted on the front panel.
WeightApprox. 1.5 Kg
ModelSpecifications Part No.
TDM-101/4 HP to 2 HP (200Watt to 1.5KW) DC Drive operating on 230VAC for PMDC motor.
(Max. Armature Current = 10Amp)		2150-1
TDM-101/4 HP to 2 HP (200Watt to 1.5KW) DC Drive operating on 230VAC for 4 wire (Armature + Field) motor.
(Max. Armature Current = 10Amp)		2150-2
TDM-10 1/4 HP to 2 HP (200Watt to 1.5KW) DC Drive operating on 115VAC for PMDC motor.
(Max. Armature Current = 20Amp)		2150-3
TDM-101/4 HP to 2 HP (200Watt to 1.5KW) DC Drive operating on 115VAC for 4 wire (Armature + Field) motor.
(Max. Armature Current = 20Amp)		2150-4
